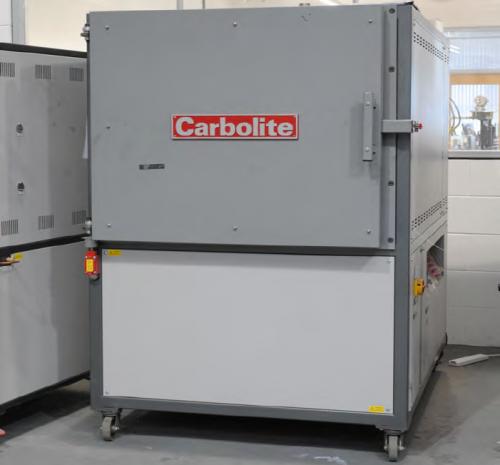

Carbolite furnace HRF 7/324

Purpose

Suited for stress relieving, tempering, normalising, annealing and other ‘low’ temperature processes.

Specifications

• - Heating by resistance wire elements on both sides of chamber
• - Double skin construction for cool outer skin temperature
• - Single hinged double seal door to minimise heat loss
• - Maximum operating temperature of 750°C
• - Maximum power 24kW
• - Volume 324L
• - Chamber width – 600mm
• - Chamber height – 600mm
• - Chamber depth – 900mm
