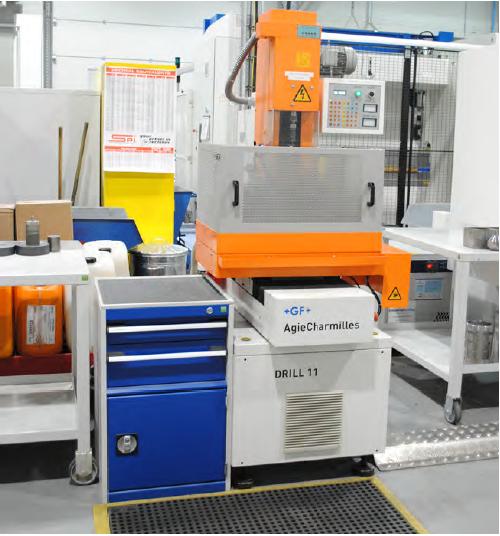

Agie Charmilles Hole Drill 11

Purpose
Has multiple point EDM hole drilling capabilities with integrated rotating spindle allows automated erosion of holes at multiple locations with minimal intervention. On-board technology includes steel, carbide, aluminium, copper, brass cutting files. A Stainless steel table and work panel and 17 Electrode Guide Sets for 0.3 to 3.0 mm diameter hole drilling.

Specifications

• Multiple point Electro Discharge drilling
• Automated erosion of holes at multiple locations with minimal intervention
• Drilling depths of up to 200mm
• Hole diameter min 0.3 mm/max 3 mm
• CNC control of all axes/keyless chuck eliminating need for special collets
• X-axis travel: 299.7 mm
• Y-axis travel: 198.1 mm
• Z-axis travel: 302.3 mm
