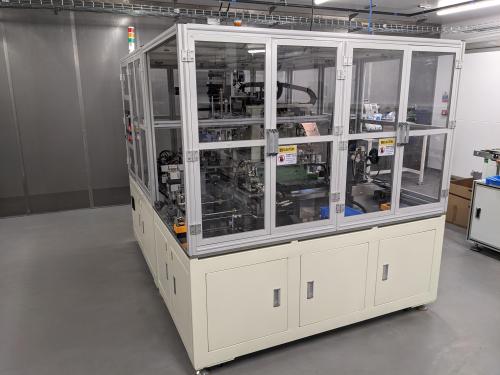

Automatic Stacking Machine

This device stacks the electrodes and folds in the separator to create a cell bundle.

Controlled tension winding

Thickness: 8-20 mm

Width: 80-120 mm

Length (excluding tabs): 150-300 mm

Tab length: 5-30 mm

Tab width: ≤50 mm

Electrode thickness: 60-300 mm

Stacking thickness: 4-10 mm
