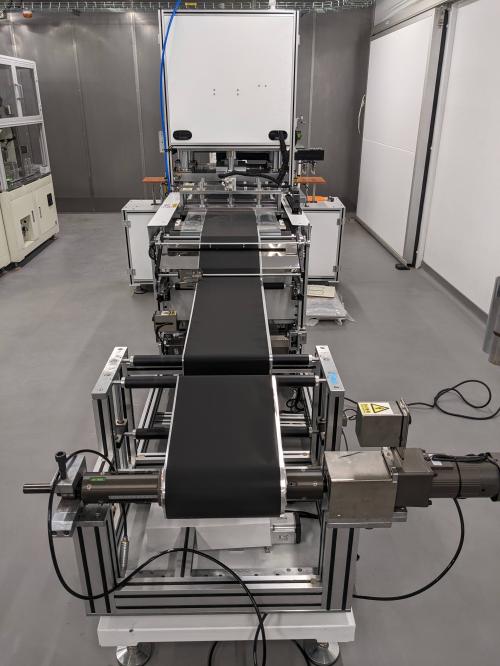

Automatic Electrode Cutting Machine

We use this equipment for punching electrodes from coated electrode foil.
Punching rate: 20-30 min^-1
Suitable for electrodes of either 300 x 100 mm, with tabs at either end or 150 x 100 mm, with tabs at the top.
With new tooling, the maximum dimensions are 500 x 400 mm.
Cutting tolerance: 20 mm
Electrode Thickness: 60 – 300 mm
